Maytronics - Cleaner Parts - Dolphin Encore

In stock

SKU

Dolphin Encore

Grouped product items
Product Name	Qty
POWER SUPPLY - BASIC $586.99
REAR LID ASSY $56.99
SIDE COVER - RIGHT, DARK GREY $5.99
SIDE COVER - LEFT, DARK GREY $5.99
FILTER COVER LATCH GREY $2.99
FINE FILTER BASKET ASSY $150.99
FINE FILTER BASKET ASSY $150.99
SUPER ULTRA FILTER BASKET (SMALL) $246.99
ULTRA-FINE FILTER BASKET ASSY $150.99
FILTER HANDLE KNOB $3.99
FILTER HANDLE SPRING S300i $9.99
FILTER HANDLE 1 $7.99
FILTER FRAME TOP $11.99
FILTER FLAP $3.99
FILTER HOLDER $3.99
FILTER DOOR 2 + O.M $11.99
ULTRA-FINE FILTERS (SET OF 4) $103.99
SCREW KA30X8 WN1412 A2 $1.99
SCREW WN1412 A2 KA40X10 - MTIL $1.99
UPPER FLOAT & HOUSING $3.99
UPPER FLOAT $3.99
FRONT LID $12.99
LID GROMMET $1.99
OUTER HOUSING $33.99
AMPHENOL PLUG $38.99
NOZZLE TUBE SMALL L+R ASSY $1.99
CABLE (NO SWIVEL, 2 WIRE) - 50 FEET $195.99
CABLE FLOAT - LARGE $13.99
MANIFOLD $9.99
RETROFIT FOR CABLE CONN. 2015 $24.99
CABLE CONN.THREE PIN $3.99
CABLE CONNECTOR $1.99
PLASTIC WASHER 7MM X 2MM $1.99
O-RING FOR CABLE CONN. $1.99
WASHER-INSIDE DIA. 13MM $1.99
NUT FOR MBU TERMINAL 2015 $1.99
IMPELLER & SCREW - BLACK $18.99
IMPELLER & SCREW - BLACK $18.99
IMPELLER MOTOR $132.99
DRIVE MOTOR $199.99
GEAR FOR DRIVE MOTOR UNIT S50/ACTIVE 10 $3.99
MOTOR CLIP $1.99
SCREW KA 40X12 $1.99
MOTOR UNIT $702.99
LOWER FLOAT & HOUSING $3.99
JOINT UP TO BASE $5.99
INNER WEIGHT & COVER $9.99
RAPID DRAIN FLAP $8.99
RAPID DRAIN FLAP $8.99
CHASSIS ASSY $104.99
BYPASS COVER - TOP $1.99
BYPASS DOOR ASSY $12.99
BYPASS COVER - LEFT $3.99
BYPASS COVER - RIGHT $3.99
CHASSIS S100 $77.99
BYPASS BOTTOM COVER $1.99
SCREW KA50X12 A2 WN1412 - MTIL $1.99
FILTER SPRINGS $3.99
TRACKS - GREY $43.99
TRACKS - GREY (SET OF 2) $84.99
LARGE WHEEL COVER - TURQUOISE $5.99
FRONT WHEEL - TURQUOISE $5.99
WHEEL DISK - TURQUOISE $1.99
WHEEL BUSHING $1.99
ACTIVE BRUSH BRACKET - RIGHT $5.99
BYPASS WEIGHT $28.99
WHEEL PLUG - TURQUOISE $1.99
SMALL WHEEL - TURQUOISE $5.99
SCREW KA50X16 - $1.99
ACTIVE BRUSH ASSY - GREY $38.99
ACTIVE BRUSH GEAR Z12 $1.99
ACTIVE BRUSH BUSHING S100 $1.99
ACTIVE BRUSH ADAPTOR S100 $3.99
ACTIVE BRUSH FINS GREY $14.99
ACTIVE BRUSH FINES GREY $14.99
RUBBER STRIPS (SET OF 10) $9.99
FINE FILTERS (SET OF 4) $54.99

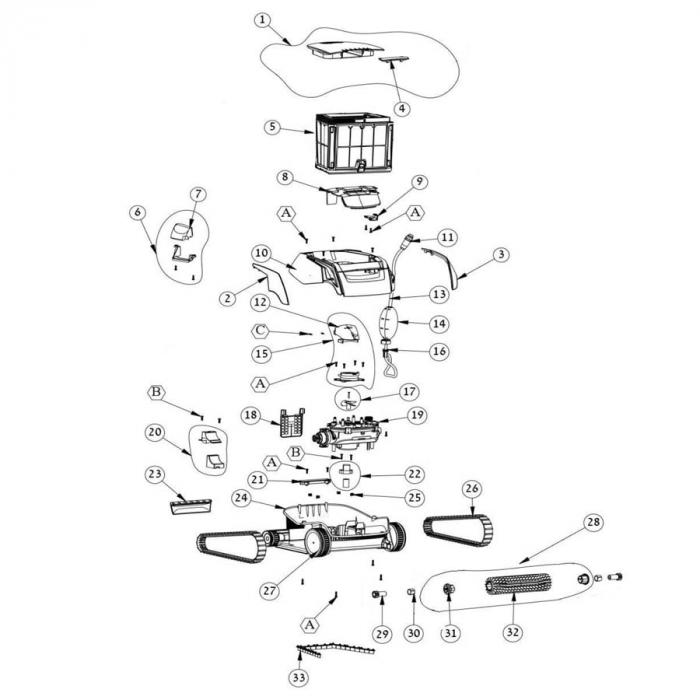

Below you'll find a consolidated list of the replacement parts for the Maytronics Dolphin Encore.

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Downloads 1

Maytronics Dolphin Encore Brochure

(Size: 498 KB)

Details

A consolidated list of the replacement parts for the Maytronics Dolphin Encore. If you're having trouble finding the parts you need, feel free to reach out to one of our representatives in the contact section below.
